Batchers

Batches are metal structures used to store fluids.
Fields of use for batchers:
Oil industry
Storage of different fluids.
Types of batchers:

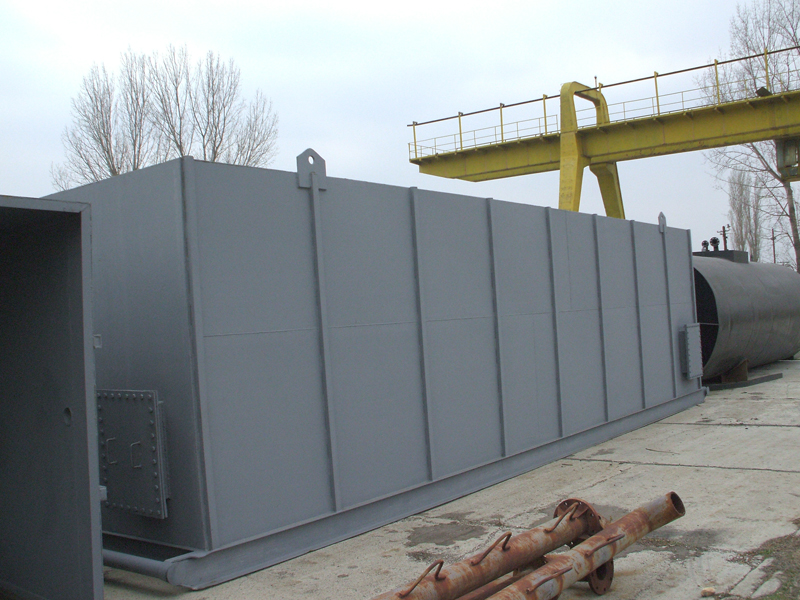

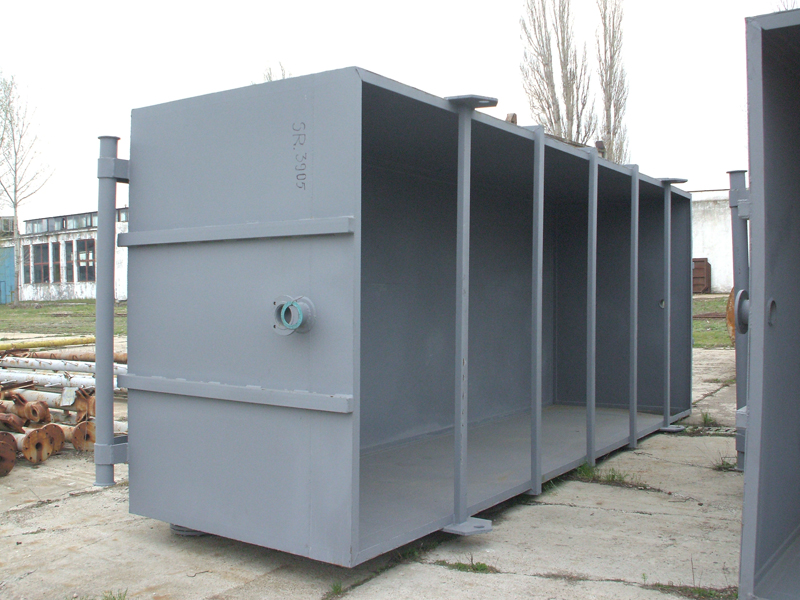

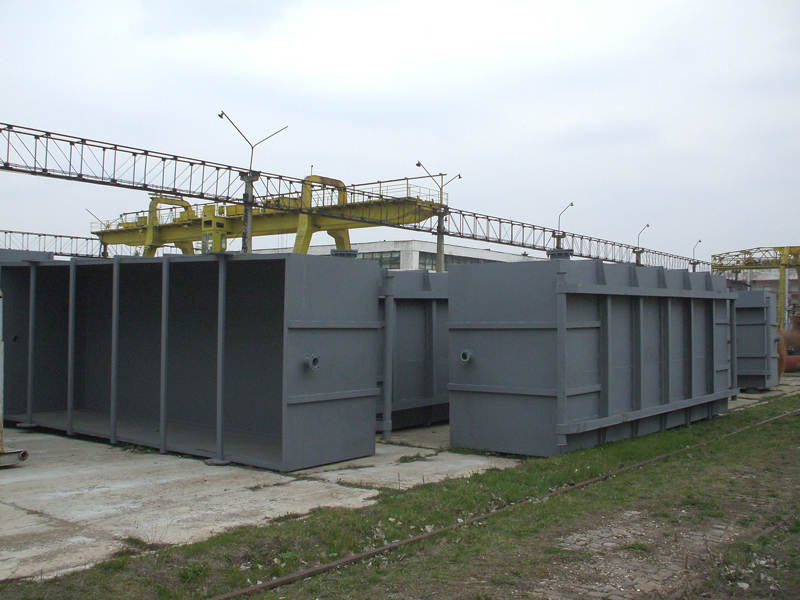

Batchers have a parallelepiped shape and are made of sheet metal and rolled sections. The construction can be covered or uncovered, and it also includes a slide where the batcher is mounted as well as and different connections of pipes necessary for the good operation of the process;
The covered batchers can be equipped with heating systems, fireproof systems, drainage and volume reading.
Technical features:
Design pressure: atmospheric;
Design temperature: -20°C/ +60°C;
Max. capacity: 100 m3;
Wall thickness: 4 ÷ 10 mm;
Materials: steel carbon, low/average/high alloy steel, stainless steel, plated steel.
